Jennifer Chu from the Massachusetts Institute of Technology reports on how the smart people have actually been pondering the impact of the rabbit as it comes out the hole and around the tree.

In cruising, rock climbing, construction, and any activity requiring the protecting of ropes, specific knots are understood to be more powerful than others. Any seasoned sailor understands, for instance, that a person kind of knot will secure a sheet to a headsail, while another is better for hitching a boat to a stacking.

But just what makes one knot more stable than another has not been well-understood, previously.

MIT mathematicians and engineers have actually established a mathematical design that forecasts how steady a knot is, based upon several crucial residential or commercial properties, including the number of crossings included and the instructions in which the rope sectors twist as the knot is pulled tight.

” These subtle differences between knots seriously figure out whether a knot is strong or not,” states Jörn Dunkel, associate teacher of mathematics at MIT. “With this design, you ought to be able to look at 2 knots that are almost identical, and be able to say which is the better one.”.

” Empirical understanding fine-tuned over centuries has taken shape out what the best knots are,” includes Mathias Kolle, the Rockwell International Career Development Partner Professor at MIT. “And now the model reveals why.”.

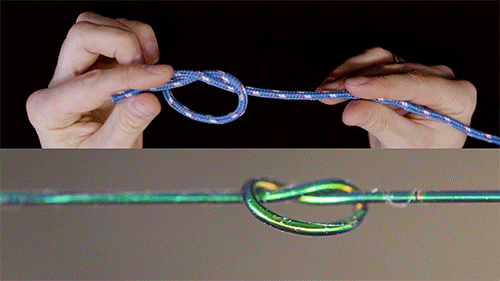

An example of overhand knots. Credit: Massachusetts Institute of Technology

Dunkel, Kolle, and Ph.D. students Vishal Patil and Joseph Sandt have actually published their results today in the journal Science

Pressure’s color

In 2018, Kolle’s group crafted elastic fibers that alter color in reaction to strain or pressure. The researchers revealed that when they pulled on a fiber, its color altered from one color of the rainbow to another, particularly in areas that experienced the greatest tension or pressure.

Kolle, an associate professor of mechanical engineering, was invited by MIT’s math department to give a talk on the fibers. Dunkel remained in the audience and started to cook up a concept: What if the pressure-sensing fibers could be used to study the stability in knots?

Mathematicians have actually long been captivated by knots, a lot so that physical knots have actually inspired an entire subfield of geography known as knot theory– the research study of theoretical knots whose ends, unlike real knots, are signed up with to form a constant pattern. In knot theory, mathematicians seek to explain a knot in mathematical terms, together with all the methods that it can be twisted or warped while still maintaining its topology, or general geometry.

” In mathematical knot theory, you toss whatever out that’s related to mechanics,” Dunkel states. “You do not care about whether you have a stiff versus soft fiber– it’s the same knot from a mathematician’s point of view. We desired to see if we might add something to the mathematical modeling of knots that accounts for their mechanical residential or commercial properties, to be able to state why one knot is more powerful than another.”.

Spaghetti physics

Dunkel and Kolle collaborated to identify what determines a knot’s stability. The group initially utilized Kolle’s fibers to tie a variety of knots, including the trefoil and figure-eight knots– setups that recognized to Kolle, who is a devoted sailor, and to rock-climbing members of Dunkel’s group. They photographed each fiber, keeping in mind where and when the fiber altered color, along with the force that was used to the fiber as it was pulled tight.

The researchers utilized the data from these experiments to calibrate a model that Dunkel’s group previously executed to explain another kind of fiber: spaghetti. Because model, Patil and Dunkel explained the behavior of spaghetti and other versatile, rope-like structures by treating each strand as a chain of little, discrete, spring-connected beads. The way each spring flexes and warps can be computed based on the force that is applied to each individual spring.

An example of a reef knot. Credit: Massachusetts Institute of Innovation

Kolle’s student Joseph Sandt had formerly prepared a color map based upon experiments with the fibers, which associates a fiber’s color with an offered pressure applied to that fiber. Patil and Dunkel incorporated this color map into their spaghetti model, then utilized the model to simulate the exact same knots that the scientists had actually connected physically using the fibers. When they compared the knots in the experiments with those in the simulations, they discovered the pattern of colors in both were essentially the exact same– a sign that the model was precisely mimicing the distribution of stress in knots.

With self-confidence in their design, Patil then simulated more complex knots, bearing in mind of which knots experienced more pressure and were therefore stronger than other knots. Once they classified knots based upon their relative strength, Patil and Dunkel looked for an explanation for why certain knots were more powerful than others. To do this, they prepared simple diagrams for the popular granny, reef, thief, and grief knots, together with more complex ones, such as the carrick, zeppelin, and Alpine butterfly.

Each knot diagram illustrates the pattern of the two hairs in a knot before it is pulled tight. The researchers consisted of the instructions of each segment of a strand as it is pulled, in addition to where hairs cross. They likewise noted the instructions each section of a hair turns as a knot is tightened up.

In comparing the diagrams of knots of numerous strengths, the researchers were able to recognize general “counting guidelines,” or qualities that identify a knot’s stability. Generally, a knot is more powerful if it has more hair crossings, along with more “twist fluctuations”– changes in the instructions of rotation from one strand sector to another.

For instance, if a fiber section is rotated to the left at one crossing and rotated to the right at a surrounding crossing as a knot is pulled tight, this creates a twist fluctuation and therefore opposing friction, which adds stability to a knot. If, however, the sector is turned in the very same direction at two neighboring crossing, there is no twist change, and the hair is most likely to rotate and slip, producing a weaker knot.

They likewise discovered that a knot can be made stronger if it has more “circulations,” which they define as an area in a knot where 2 parallel strands loop against each other in opposite instructions, like a circular flow.

By taking into consideration these basic counting guidelines, the team had the ability to explain why a reef knot, for instance, is stronger than a granny knot. While the 2 are almost identical, the reef knot has a greater variety of twist variations, making it a more steady configuration. Similarly, the zeppelin knot, since of its slightly greater circulations and twist fluctuations, is more powerful, though perhaps more difficult to untie, than the Alpine butterfly– a knot that is typically utilized in climbing up.

” If you take a family of comparable knots from which empirical knowledge singles one out as “the best,” now we can state why it might deserve this difference,” says Kolle, who envisions the brand-new design can be utilized to set up knots of numerous strengths to match particular applications. “We can play knots against each other for uses in suturing, sailing, climbing, and building and construction. It’s terrific.”.
